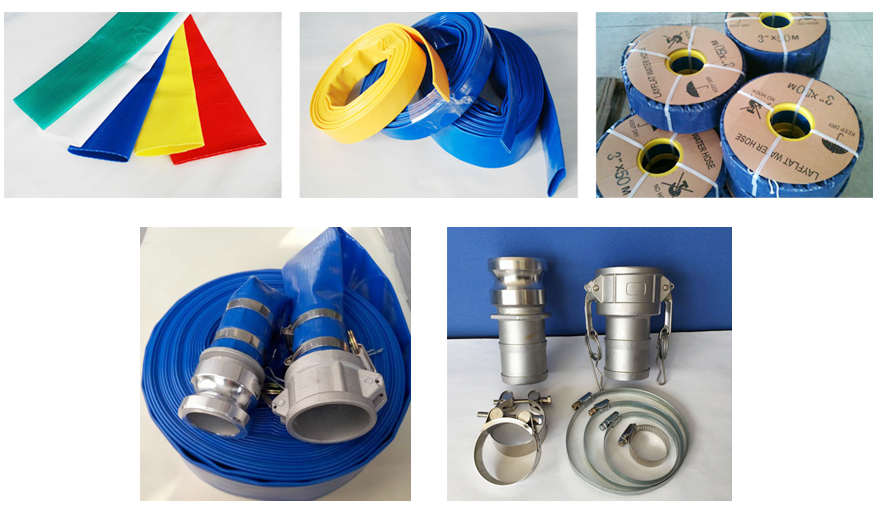

Medium Duty PVC Layflat Hose

Applications
This hose is Widely used for water discharge under medium or low working pressure in agriculture irrigation, forestry sprinkler irrigation, construction project, industrial and mining enterprise.

Characteristics
The hose is made from PVC tube and PVC cover with fibre reinforced layer , by one-step procedure .This product has the characteristics of anti-fracture, resisted high pressure and small expansivity. Increased the radial fibers , improved the tensile strength.

1. anti-stretch, anti-fracture, resisted high pressure and small expansion rate.

2. lightweight , flexible, bright colors, anti-erosion, anti-aging, abrasion resistance and anti-ultraviolet.

3.No odor, environmental protection products.

4.good weather resistance and suitable for conveying liquids

Working Temperature: -5°C-65°C

M/Roll

Item No.	Inch	I.D.		W.P.	B.P.	Weight	CBM/Roll
		MM	M	BAR		KG/Roll	M³
MDLH-025	1"	25	100	4	12	15	0017
			100	6	18	16.5	0.019
MDLH-032	1-1/4"	32	100	4	12	17	0.020
			100	6	18	19	0.022
MDLH-038	1-1/2"	38	100	4	12	20.5	0.024
			100	6	18	23	0.026
MDLH-051	2"	51	100	4	12	23	0.034
			100	6	18	30	0.036
MDLH-064	2-1/2"	64	100	4	12	32	0.046
			100	6	18	43	0.048
MDLH-076	3”	76	100	4	12	36	0.060
			100	6	18	50	0.062
MDLH-102	4”	102	100	4	12	55	0.083
			100	6	18	86.5	0.085
MDLH-127	5"	127	100	4	12	75	0.109
			100	6	18	108	0.111
MDLH-153	6"	153	100	4	12	90	0.141
			100	6	18	160	0.143
MDLH-203	8"	203	100	3	9	180	0.185
			100	4	12	200	0.187
MDLH-255	10"	255	50	3	9	130	0.170
MDLH-307	12"	307	50	3	9	155	0.225
