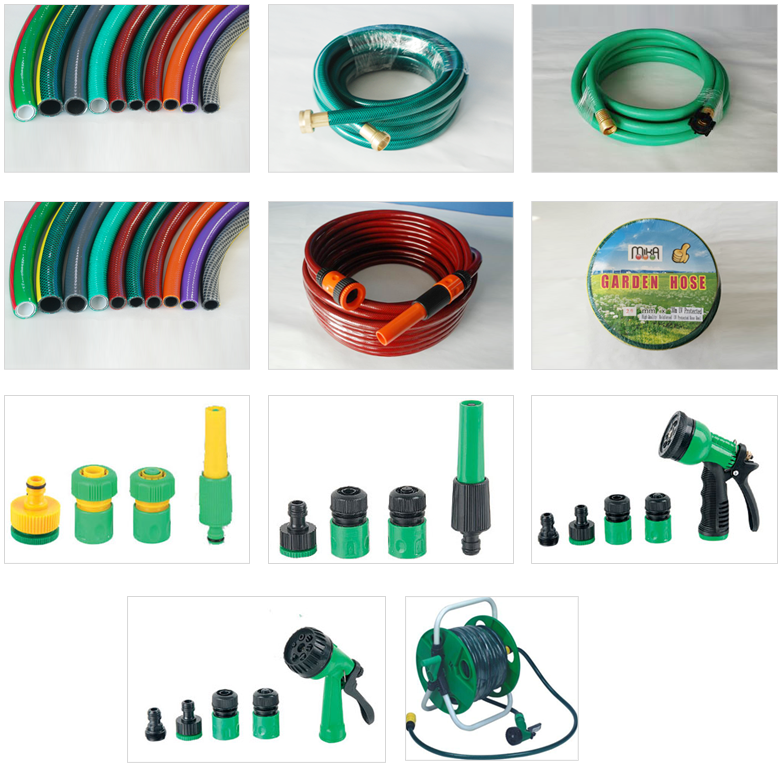

PVC Garden Hose

Applications
The hose is widely used for irrigation and washing in the parks, community, factories and families. Being light, colorful, flexible and with the excellent resistance to hard weather conditions, this hose is the ideal matched product of garden irrigation.

Characteristics
The inner layer adopt antibacterial PVC, it will not produce fungus or moss even for long time no use. The middle layer made by 24 strips fiber can endure high water pressure, the outer layer adopt ultraviolet radiation resistance PVC, no fissure phenomenon by expose it to the sun, match fitting or water gun, packing and the length all can make according to the requirement of customer.

Working Temperature: -5°C-65°C
Specifications of PVC Garden Hose

Item No.	Inch	I.D	O.D.	M/Roll	W.P.	B.P.	Weight	Volume
		MM		M	Bar		Kg/Roll	M3
GH-6	1/4	6	10	100	8	24	6.7	0.024
		6	11		10	30	9	0.025
GH-8	5/16	8	12		7	21	8.4	0.021
		8	13		10	30	11.2	0.026
GH-9	3/8	9	14		10	30	12.2	0.028
GH- 10		10	14		5	15	10.1	0.028
		10	15		9	27	13.3	0.030
GH-12	1/2	12	16		8	24	11.9	0.048
GH-13		13	17		5	15	12.7	0.048
		13	18		8		16.4	0.048
GH-16	5/8	16	20	50	5	15	7.63	0.033
		16	21		8	24	9.8	0.033
GH-19	3/4	19	24		4	12	11.4	0.045
		19	25		8	24	14	0.045
GH-25	1	25	30		4	12	14.57	0.074
		25	31		6	18	17.8	0.083
