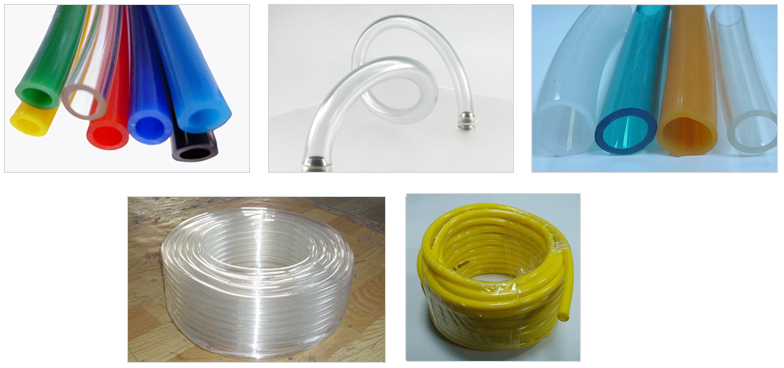

PVC Transparent Hose

Applications
The product is used for conveying water, oil, gas under normal working condition in the factory, farm, ship, building and family.

Characteristics
It is flexible, durable, non-toxic, without odor, and resistant to high pressure and erosion.
BY adding colorful symbol lines on the surface of the hose, it looks more beautiful.

Working Temperature: -5°C-65°C
Specifications of PVC Transparent Hose

Item No.	Inch	I.D.	O.D	M/Roll	W.P.	B.P.	Weight	CBM/Roll
		MM	MM	M	BAR		KG/Roll	M³
CH-006	1/4"	6	8	100	5	15	2.9	0.012
CH-008	5/16"	8	10	100	5	15	3.8	0.017
CH-010	3/8"	10	12	100	5	15	4.6	0.027
CH-012	1/2”	12	15	50	3	10	4.3	0.021
CH-015	5/8”	15	18	50	3	10	5.2	0.029
CH-019	3/4"	19	22	50	3	10	6.5	0.047
CH-025	1”	25	30	50	3	9	17.8	0.07
CH-032	1-1/4”	32	38	50	3	9	22	0.067
CH-038	1-1/2”	38	44	50	3	9	26	0.122
CH-050	2”	50	58	40	3	9	36.6	0.226
