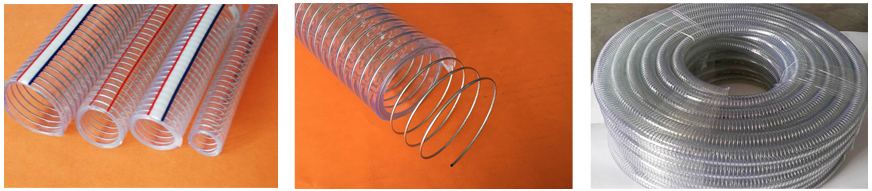

PVC Steel Wire Reinforced Hose

Applications
The hose is widely used for drawing and conveying water, oil and powder in the factories, agriculture, engineering, foodstuffs and sanitation lines. The hose used for foodstuffs is made of special food grade materials. It is non-toxic, light, without odor and transparent. This hose can be used for conveying milk, beverage, distilled liquor, beer, jam, and other foods.

Characteristics
1.This hose, with steel wire screwing inlaid in the hose, is light, transparent, with small bending radius. It has good adaptability to hard weather conditions and minus pressure.
2.With colorful symbol lines on the surface of the hose, it can be more beautiful.

Working Temperature: -5°C-65°C
Specifications of PVC Spiral Steel Wire Reinforced Hose

Item No.	Inch	I.D.	O.D	M/Roll	W.P.	B.P.		Weight	CBM/Roll
						AT23℃	AT60℃
		MM	MM	MM	Bar	Bar	Bar	KG/Roll	M³
SWRH-006	1/4”	6	11	100	-1-11	33	16	11.5	0.028
SWRH-008	5/16”	8	14	100		33	16	15	0.039
SWRH-009	3/8”	9	15	100		33	16	18	0.029
SWRH-010	3/8”	10	16	100		33	15	20	0.045
SWRH-012	1/2”	12	18	100	-1-10	30	15	22	0.049
SWRH-015	5/8”	15	22	100		30	13	31	0.074
SWRH-019	3/4”	19	26	50		30	12	18	0.052
SWRH-025	1”	25	33	50		25	10	27	0.08
SWRH-032	1-1/4”	32	41	40	-1-7	20	9	31	0.106
SWRH-038	1-1/2”	38	48	40	-1-6	18	8	42	0.154
SWRH-045	1-3/4”	45	56	40		17	8	52	0.190
SWRH-048	1-7/8”	48	59	40	-1-5	16	7	56	0.208
SWRH-050	2”	50	62	40	-1-5	16	7	64	0.276
SWRH-058	2-5/16	58	70	40		15	7	80	0.350
SWRH-063	2-1/2”	63	80	30		14	5	84	0.331
SWRH-075	3”	75	91	30		13	5	105	0.436
SWRH-090	3-1/2”	90	108	20	-1-4	12	5	90	0.640
SWRH-100	4”	100	118	20	-1-3	10	5	96	0.505
SWRH-110	4-3/8”	110	123	20		10	5	80	0.81
SWRH-117	4-5/8”	117	133	20		10	5	110	1.024
SWRH-127	5”	127	143	20		10	5	120	1.243
SWRH-140	5-1/2”	140	156	10		10	5	65	0.627
SWRH-152	6”	152	170	10		10	5	90	0.765
SWRH-160	6-5/16	160	176	10		10	5	85	0.922
SWRH-180	7”	180	196	10		10	5	85	1.156
SWRH-200	8”	200	224	10		10	5	120	1.426
